Provides map of data types to a filter chain to apply to the data. More...

#include <KnowledgeRecordFilters.h>

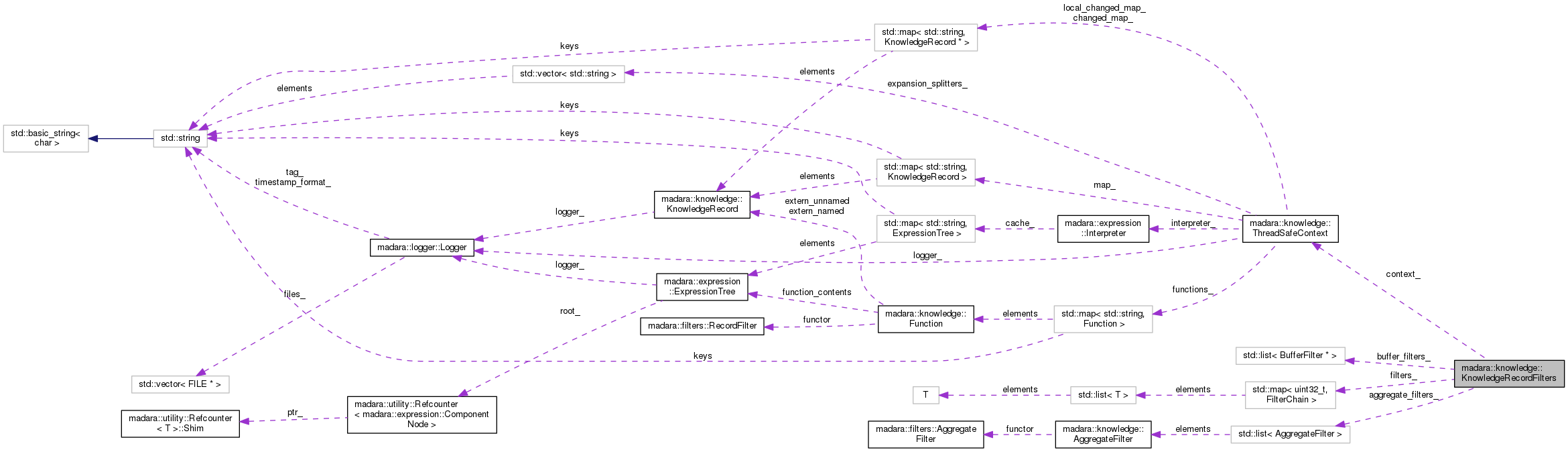

Collaboration diagram for madara::knowledge::KnowledgeRecordFilters:

[legend]

Public Member Functions
	KnowledgeRecordFilters ()
	Default constructor. More...

	KnowledgeRecordFilters (const KnowledgeRecordFilters &filters)
	Copy constructor. More...

virtual	~KnowledgeRecordFilters ()
	Destructor. More...

void	add (uint32_t types, knowledge::KnowledgeRecord(*function)(FunctionArguments &, Variables &))
	Adds a filter to the list of types. More...

void	add (void(*function)(KnowledgeMap &, const transport::TransportContext &, Variables &))
	Adds an aggregate filter. More...

void	add (filters::AggregateFilter *filter)
	Adds an aggregate filter functor. More...

void	add (filters::BufferFilter *filter)
	Adds a buffer filter to be applied to the message buffer just before a send, before a receive, and just before a rebroadcast. More...

void	add (uint32_t types, filters::RecordFilter *filter)
	Adds an individual record filter functor. More...

void	attach (ThreadSafeContext *context)
	Attaches a context. More...

void	clear (uint32_t types)
	Clears the list of filters for the specified types. More...

void	clear_aggregate_filters (void)
	Clears the aggregate filters. More...

void	clear_buffer_filters (void)
	Clears the buffer filters. More...

knowledge::KnowledgeRecord	filter (const knowledge::KnowledgeRecord &input, const std::string &name, transport::TransportContext &context) const
	Filters an input according to its filter chain. More...

void	filter (KnowledgeMap &records, const transport::TransportContext &transport_context) const
	Calls aggregate filter chain on the provided aggregate records. More...

void	filter_decode (unsigned char *source, int size, int max_size) const
	Calls decode on the the buffer filter chain. More...

void	filter_encode (unsigned char *source, int size, int max_size) const
	Calls encode on the the buffer filter chain. More...

size_t	get_number_of_aggregate_filters (void) const
	Returns the number of aggregate update filters. More...

size_t	get_number_of_buffer_filters (void) const
	Returns the number of buffer filters. More...

size_t	get_number_of_filtered_types (void) const
	Returns the number of types that have filters. More...

void	operator= (const KnowledgeRecordFilters &rhs)
	Assignment operator. More...

void	print_num_filters (void) const
	Prints the number of filters chained for each type. More...

Protected Attributes
AggregateFilters	aggregate_filters_
	List of aggregate filters. More...

filters::BufferFilters	buffer_filters_
	List of buffer filters. More...

ThreadSafeContext *	context_
	Context used by this filter. More...

FilterMap	filters_
	Container for mapping types to filter chains. More...

Detailed Description

Provides map of data types to a filter chain to apply to the data.

Definition at line 50 of file KnowledgeRecordFilters.h.

Constructor & Destructor Documentation

madara::knowledge::KnowledgeRecordFilters::KnowledgeRecordFilters ( )

Default constructor.

Definition at line 23 of file KnowledgeRecordFilters.cpp.

madara::knowledge::KnowledgeRecordFilters::KnowledgeRecordFilters ( const KnowledgeRecordFilters & filters )

Copy constructor.

Definition at line 28 of file KnowledgeRecordFilters.cpp.

madara::knowledge::KnowledgeRecordFilters::~KnowledgeRecordFilters ( )

virtual

Destructor.

Definition at line 36 of file KnowledgeRecordFilters.cpp.

Member Function Documentation

void madara::knowledge::KnowledgeRecordFilters::add	(	uint32_t	types,
		knowledge::KnowledgeRecord(*)(FunctionArguments &, Variables &)	function
	)

Adds a filter to the list of types.

Parameters

types	the types to add the filter to
function	the function that will take the knowledge record in FunctionArguments.

Definition at line 53 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::add ( void(*)(KnowledgeMap &, const transport::TransportContext &, Variables &) function )

Adds an aggregate filter.

Parameters

function the function that will filter the aggregation

Definition at line 81 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::add ( filters::AggregateFilter * filter )

Adds an aggregate filter functor.

Parameters

filter the functor that will filter the aggregation

Definition at line 98 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::add ( filters::BufferFilter * filter )

Adds a buffer filter to be applied to the message buffer just before a send, before a receive, and just before a rebroadcast.

Parameters

filter the functor that will filter the message buffer

Definition at line 114 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::add	(	uint32_t	types,
		filters::RecordFilter *	filter
	)

Adds an individual record filter functor.

Parameters

types	the types to add the filter to
filter	the functor that will filter the aggregation

Definition at line 130 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::attach ( ThreadSafeContext * context )

Attaches a context.

If the context ever goes out of scope, a 0 should be passed into this function to reset the context.

Parameters

context context to be used for Variable lookups

Definition at line 243 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::clear ( uint32_t types )

Clears the list of filters for the specified types.

Parameters

types the types to clear the filters of

Definition at line 250 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::clear_aggregate_filters ( void )

Clears the aggregate filters.

Definition at line 268 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::clear_buffer_filters ( void )

Clears the buffer filters.

Definition at line 275 of file KnowledgeRecordFilters.cpp.

madara::knowledge::KnowledgeRecord madara::knowledge::KnowledgeRecordFilters::filter	(	const knowledge::KnowledgeRecord &	input,
		const std::string &	name,
		transport::TransportContext &	context
	)		const

Filters an input according to its filter chain.

The arguments passed to the filter are the following:

args[0] : The knowledge record that the filter is acting upon
args[1] : The name of the knowledge record, if applicable ("" if unnamed)
args[2] : The type of operation calling the filter (integer valued).
: IDLE_OPERATION (should never see)
: SENDING_OPERATION (transport is about to send the record)
: RECEIVING_OPERATION (transport has received the record and is : about to apply the update)
: REBROADCASTING_OPERATION (transport is about to rebroadcast the record – only happens if rebroadcast is enabled in Transport Settings)
args[3] : Bandwidth used while sending through this transport
args[4] : Bandwidth used while receiving from this transport
args[5] : Message timestamp (when the message was originally sent)
args[6] : Current timestamp (the result of time (NULL))
args[7] : Network domain (partition of the network knowledge)
args[8] : Knowledge originator (where this update comes fromm)

Parameters

input	the argument to the filter chain
name	variable name ("" if unnamed)
context	the context of the transport

Returns: the result of filtering the input

arguments vector is modifiable by filter, so we have to resize every filter call to make sure we have adequate space

Definition at line 315 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::filter	(	KnowledgeMap &	records,
		const transport::TransportContext &	transport_context
	)		const

Calls aggregate filter chain on the provided aggregate records.

Parameters

records	the aggregate record map
transport_context	the context of the transport

Definition at line 600 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::filter_decode	(	unsigned char *	source,
		int	size,
		int	max_size
	)		const

Calls decode on the the buffer filter chain.

Parameters

source	the source and destination buffer
size	the amount of data in the buffer in bytes
max_size	the amount of bytes the buffer can hold

Returns: the new size after encoding

Definition at line 767 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::filter_encode	(	unsigned char *	source,
		int	size,
		int	max_size
	)		const

Calls encode on the the buffer filter chain.

Parameters

source	the source and destination buffer
size	the amount of data in the buffer in bytes
max_size	the amount of bytes the buffer can hold

Returns: the new size after encoding

Definition at line 778 of file KnowledgeRecordFilters.cpp.

size_t madara::knowledge::KnowledgeRecordFilters::get_number_of_aggregate_filters ( void ) const

Returns the number of aggregate update filters.

Returns: the number of aggregate update filters

Definition at line 797 of file KnowledgeRecordFilters.cpp.

size_t madara::knowledge::KnowledgeRecordFilters::get_number_of_buffer_filters ( void ) const

Returns the number of buffer filters.

Returns: the number of buffer filters

Definition at line 804 of file KnowledgeRecordFilters.cpp.

size_t madara::knowledge::KnowledgeRecordFilters::get_number_of_filtered_types ( void ) const

Returns the number of types that have filters.

Returns: the number of types that have filters

Definition at line 790 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::operator= ( const KnowledgeRecordFilters & rhs )

Assignment operator.

Parameters

rhs	the value to be copied into this class

Definition at line 41 of file KnowledgeRecordFilters.cpp.

void madara::knowledge::KnowledgeRecordFilters::print_num_filters ( void ) const

Prints the number of filters chained for each type.

Definition at line 282 of file KnowledgeRecordFilters.cpp.

Member Data Documentation

AggregateFilters madara::knowledge::KnowledgeRecordFilters::aggregate_filters_

protected

List of aggregate filters.

Definition at line 262 of file KnowledgeRecordFilters.h.

filters::BufferFilters madara::knowledge::KnowledgeRecordFilters::buffer_filters_

protected

List of buffer filters.

Definition at line 267 of file KnowledgeRecordFilters.h.

ThreadSafeContext* madara::knowledge::KnowledgeRecordFilters::context_

protected

Context used by this filter.

Definition at line 272 of file KnowledgeRecordFilters.h.

FilterMap madara::knowledge::KnowledgeRecordFilters::filters_

protected

Container for mapping types to filter chains.

Definition at line 257 of file KnowledgeRecordFilters.h.

The documentation for this class was generated from the following files:

include/madara/knowledge/KnowledgeRecordFilters.h
include/madara/knowledge/KnowledgeRecordFilters.cpp
