Builder object returned by build() More...

#include <Transaction.h>

Inheritance diagram for madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >:

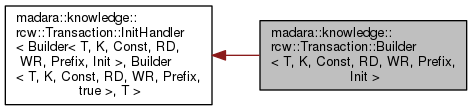

Collaboration diagram for madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >:

Public Member Functions
void	add () const
	Finish configuring this Builder, and add the new mapping. More...

init_type	init () const
	If used, the mapping will push the current value of the variable into the knowledge base, immediately. More...

template<class V >
init_type	init (V &&val) const
	As init(), but first set the variable to . More...

prefix_type	prefix () const
	If used, the name given in build() will be used as a prefix, as apropriate for the variable type. More...

ro_type	readonly () const
	The mapping will only read from the knowledge base, not write back Synonym for. More...

ro_type	ro () const
	The mapping will only read from the knowledge base, not write back. More...

wo_type	wo () const
	The mapping will only write to the knowledge base. More...

wo_type	writeonly () const
	The mapping will only write to the knowledge base. More...

Private Types
typedef Builder< T, K, Const, RD, WR, Prefix, true >	init_type

typedef Builder< T, K, Const, RD, WR, true, Init >	prefix_type

typedef Builder< T, K, Const, true, false, Prefix, Init >	ro_type

typedef std::conditional< Const, const Transaction , Transaction >::type	trans_type

typedef Builder< T, K, Const, false, true, Prefix, Init >	wo_type

Private Member Functions
	Builder (trans_ref_type trans, K key, T &val)

template<bool R, bool W, bool P, bool I>
	Builder (const Builder< T, K, Const, R, W, P, I > &o)

Private Attributes
const K	key_

T *const	tracked_

const trans_type	trans_

decltype(*(trans_type) nullptr) typede	trans_ref_type )

Static Private Attributes
static const bool	init_ = Init

static const bool	prefix_ = Prefix

static const bool	rd_ = RD

static const bool	wr_ = WR

Friends
class	InitHandler< Builder, init_type, T >

class	Transaction

Detailed Description

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>
class madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >

Builder object returned by build()

Builder type which will be returned from the build*() methods No need to construct directly; just use those methods.

Definition at line 52 of file Transaction.h.

Member Typedef Documentation

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

typedef Builder<T, K, Const, RD, WR, Prefix, true> madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::init_type

private

Definition at line 143 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

typedef Builder<T, K, Const, RD, WR, true, Init> madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::prefix_type

private

Definition at line 144 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

typedef Builder<T, K, Const, true, false, Prefix, Init> madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::ro_type

private

Definition at line 145 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

typedef std::conditional<Const, const Transaction *, Transaction *>::type madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::trans_type

private

Definition at line 126 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

typedef Builder<T, K, Const, false, true, Prefix, Init> madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::wo_type

private

Definition at line 146 of file Transaction.h.

Constructor & Destructor Documentation

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::Builder	(	trans_ref_type	trans,
		K	key,
		T &	val
	)

inlineprivate

Definition at line 136 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

template<bool R, bool W, bool P, bool I>

madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::Builder ( const Builder< T, K, Const, R, W, P, I > & o )

inlineprivate

Definition at line 140 of file Transaction.h.

Member Function Documentation

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

void madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::add ( ) const

inline

Finish configuring this Builder, and add the new mapping.

Definition at line 190 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

init_type madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::init ( ) const

inline

If used, the mapping will push the current value of the variable into the knowledge base, immediately.

Definition at line 151 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

template<class V >

init_type madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::init ( V && val ) const

inline

As init(), but first set the variable to .

Parameters

val	the value to set

Definition at line 180 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

prefix_type madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::prefix ( ) const

inline

If used, the name given in build() will be used as a prefix, as apropriate for the variable type.

Definition at line 159 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

ro_type madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::readonly ( ) const

inline

The mapping will only read from the knowledge base, not write back Synonym for.

See also: ro

Definition at line 166 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

ro_type madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::ro ( ) const

inline

The mapping will only read from the knowledge base, not write back.

Definition at line 162 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

wo_type madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::wo ( ) const

inline

The mapping will only write to the knowledge base.

On pull(), the variable will be reset to its default value.

Definition at line 170 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

wo_type madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::writeonly ( ) const

inline

The mapping will only write to the knowledge base.

On pull(), the variable will be reset to its default value. Synonym for

See also: wo

Definition at line 175 of file Transaction.h.

Friends And Related Function Documentation

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

friend class InitHandler< Builder, init_type, T >

friend

Definition at line 187 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

friend class Transaction

friend

Definition at line 195 of file Transaction.h.

Member Data Documentation

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

const bool madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::init_ = Init

staticprivate

Definition at line 134 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

const K madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::key_

private

Definition at line 129 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

const bool madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::prefix_ = Prefix

staticprivate

Definition at line 133 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

const bool madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::rd_ = RD

staticprivate

Definition at line 131 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

T* const madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::tracked_

private

Definition at line 130 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

const trans_type madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::trans_

private

Definition at line 128 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

decltype(*(trans_type)nullptr) typede madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::trans_ref_type)

private

Definition at line 127 of file Transaction.h.

template<class T, class K, bool Const, bool RD, bool WR, bool Prefix, bool Init>

const bool madara::knowledge::rcw::Transaction::Builder< T, K, Const, RD, WR, Prefix, Init >::wr_ = WR

staticprivate

Definition at line 132 of file Transaction.h.

The documentation for this class was generated from the following file:

include/madara/knowledge/rcw/Transaction.h
