In correct XML the declaration is the first entry in the file. More...

#include <tinyxml.h>

Inheritance diagram for TiXmlDeclaration:

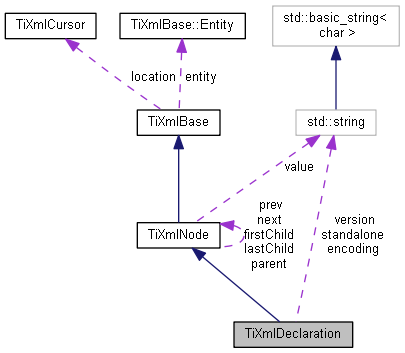

Collaboration diagram for TiXmlDeclaration:

[legend]

Public Types
enum	{ TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_PARSING_ELEMENT, TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES, TIXML_ERROR_PARSING_EMPTY, TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT, TIXML_ERROR_PARSING_DECLARATION, TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_EMBEDDED_NULL, TIXML_ERROR_PARSING_CDATA, TIXML_ERROR_DOCUMENT_TOP_ONLY, TIXML_ERROR_STRING_COUNT }

enum	NodeType { TINYXML_DOCUMENT, TINYXML_ELEMENT, TINYXML_COMMENT, TINYXML_UNKNOWN, TINYXML_TEXT, TINYXML_DECLARATION, TINYXML_TYPECOUNT }
	The types of XML nodes supported by TinyXml. More...

Public Member Functions
	TiXmlDeclaration ()
	Construct an empty declaration. More...

	TiXmlDeclaration (const std::string &_version, const std::string &_encoding, const std::string &_standalone)
	Constructor. More...

	TiXmlDeclaration (const char _version, const char _encoding, const char *_standalone)
	Construct. More...

	TiXmlDeclaration (const TiXmlDeclaration &copy)

virtual	~TiXmlDeclaration ()

virtual bool	Accept (TiXmlVisitor *visitor) const
	Walk the XML tree visiting this node and all of its children. More...

void	Clear ()
	Delete all the children of this node. Does not affect 'this'. More...

virtual TiXmlNode *	Clone () const
	Creates a copy of this Declaration and returns it. More...

int	Column () const
	See Row() More...

const char *	Encoding () const
	Encoding. Will return an empty string if none was found. More...

const TiXmlNode *	FirstChild () const
	The first child of this node. Will be null if there are no children. More...

TiXmlNode *	FirstChild ()

const TiXmlNode *	FirstChild (const char *value) const
	The first child of this node with the matching 'value'. More...

TiXmlNode *	FirstChild (const char *_value)
	The first child of this node with the matching 'value'. Will be null if none found. More...

const TiXmlNode *	FirstChild (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	FirstChild (const std::string &_value)
	STL std::string form. More...

const TiXmlElement *	FirstChildElement () const
	Convenience function to get through elements. More...

TiXmlElement *	FirstChildElement ()

const TiXmlElement *	FirstChildElement (const char *_value) const
	Convenience function to get through elements. More...

TiXmlElement *	FirstChildElement (const char *_value)

const TiXmlElement *	FirstChildElement (const std::string &_value) const
	STL std::string form. More...

TiXmlElement *	FirstChildElement (const std::string &_value)
	STL std::string form. More...

const TiXmlDocument *	GetDocument () const
	Return a pointer to the Document this node lives in. More...

TiXmlDocument *	GetDocument ()

void *	GetUserData ()
	Get a pointer to arbitrary user data. More...

const void *	GetUserData () const
	Get a pointer to arbitrary user data. More...

TiXmlNode *	InsertAfterChild (TiXmlNode *afterThis, const TiXmlNode &addThis)
	Add a new node related to this. More...

TiXmlNode *	InsertBeforeChild (TiXmlNode *beforeThis, const TiXmlNode &addThis)
	Add a new node related to this. More...

TiXmlNode *	InsertEndChild (const TiXmlNode &addThis)
	Add a new node related to this. More...

const TiXmlNode *	IterateChildren (const TiXmlNode *previous) const
	An alternate way to walk the children of a node. More...

TiXmlNode *	IterateChildren (const TiXmlNode *previous)

const TiXmlNode *	IterateChildren (const char value, const TiXmlNode previous) const
	This flavor of IterateChildren searches for children with a particular 'value'. More...

TiXmlNode *	IterateChildren (const char _value, const TiXmlNode previous)

const TiXmlNode *	IterateChildren (const std::string &_value, const TiXmlNode *previous) const
	STL std::string form. More...

TiXmlNode *	IterateChildren (const std::string &_value, const TiXmlNode *previous)
	STL std::string form. More...

const TiXmlNode *	LastChild () const

TiXmlNode *	LastChild ()
	The last child of this node. Will be null if there are no children. More...

const TiXmlNode *	LastChild (const char *value) const

TiXmlNode *	LastChild (const char *_value)
	The last child of this node matching 'value'. Will be null if there are no children. More...

const TiXmlNode *	LastChild (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	LastChild (const std::string &_value)
	STL std::string form. More...

TiXmlNode *	LinkEndChild (TiXmlNode *addThis)
	Add a new node related to this. More...

const TiXmlNode *	NextSibling (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	NextSibling (const std::string &_value)
	STL std::string form. More...

const TiXmlNode *	NextSibling () const
	Navigate to a sibling node. More...

TiXmlNode *	NextSibling ()

const TiXmlNode *	NextSibling (const char *) const
	Navigate to a sibling node with the given 'value'. More...

TiXmlNode *	NextSibling (const char *_next)

const TiXmlElement *	NextSiblingElement () const
	Convenience function to get through elements. More...

TiXmlElement *	NextSiblingElement ()

const TiXmlElement *	NextSiblingElement (const char *) const
	Convenience function to get through elements. More...

TiXmlElement *	NextSiblingElement (const char *_next)

const TiXmlElement *	NextSiblingElement (const std::string &_value) const
	STL std::string form. More...

TiXmlElement *	NextSiblingElement (const std::string &_value)
	STL std::string form. More...

bool	NoChildren () const
	Returns true if this node has no children. More...

void	operator= (const TiXmlDeclaration &copy)

TiXmlNode *	Parent ()
	One step up the DOM. More...

const TiXmlNode *	Parent () const

virtual const char *	Parse (const char p, TiXmlParsingData data, TiXmlEncoding encoding)

const TiXmlNode *	PreviousSibling () const
	Navigate to a sibling node. More...

TiXmlNode *	PreviousSibling ()

const TiXmlNode *	PreviousSibling (const char *) const
	Navigate to a sibling node. More...

TiXmlNode *	PreviousSibling (const char *_prev)

const TiXmlNode *	PreviousSibling (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	PreviousSibling (const std::string &_value)
	STL std::string form. More...

virtual void	Print (FILE cfile, int depth, std::string str) const

virtual void	Print (FILE *cfile, int depth) const
	All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null. More...

bool	RemoveChild (TiXmlNode *removeThis)
	Delete a child of this node. More...

TiXmlNode *	ReplaceChild (TiXmlNode *replaceThis, const TiXmlNode &withThis)
	Replace a child of this node. More...

int	Row () const
	Return the position, in the original source file, of this node or attribute. More...

void	SetUserData (void *user)
	Set a pointer to arbitrary user data. More...

void	SetValue (const char *_value)
	Changes the value of the node. More...

void	SetValue (const std::string &_value)
	STL std::string form. More...

const char *	Standalone () const
	Is this a standalone document? More...

virtual const TiXmlComment *	ToComment () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlComment *	ToComment ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlDeclaration *	ToDeclaration () const
	Cast to a more defined type. Will return null not of the requested type. More...

virtual TiXmlDeclaration *	ToDeclaration ()
	Cast to a more defined type. Will return null not of the requested type. More...

virtual const TiXmlDocument *	ToDocument () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlDocument *	ToDocument ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlElement *	ToElement () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlElement *	ToElement ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlText *	ToText () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlText *	ToText ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlUnknown *	ToUnknown () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlUnknown *	ToUnknown ()
	Cast to a more defined type. Will return null if not of the requested type. More...

int	Type () const
	Query the type (as an enumerated value, above) of this node. More...

const char *	Value () const
	The meaning of 'value' changes for the specific type of TiXmlNode. More...

const std::string &	ValueStr () const
	Return Value() as a std::string. More...

const std::string &	ValueTStr () const

const char *	Version () const
	Version. Will return an empty string if none was found. More...

Static Public Member Functions
static void	EncodeString (const std::string &str, std::string *out)
	Expands entities in a string. More...

static bool	IsWhiteSpaceCondensed ()
	Return the current white space setting. More...

static void	SetCondenseWhiteSpace (bool condense)
	The world does not agree on whether white space should be kept or not. More...

Static Public Attributes
static const int	utf8ByteTable [256]

Protected Member Functions
void	CopyTo (TiXmlNode *target) const

void	CopyTo (TiXmlDeclaration *target) const

TiXmlNode *	Identify (const char *start, TiXmlEncoding encoding)

virtual void	StreamIn (std::istream in, std::string tag)

Static Protected Member Functions
static void	ConvertUTF32ToUTF8 (unsigned long input, char output, int length)

static const char *	GetChar (const char p, char _value, int *length, TiXmlEncoding encoding)

static const char *	GetEntity (const char in, char value, int *length, TiXmlEncoding encoding)

static int	IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)

static int	IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)

static bool	IsWhiteSpace (char c)

static bool	IsWhiteSpace (int c)

static const char *	ReadName (const char p, std::string name, TiXmlEncoding encoding)

static const char *	ReadText (const char in, std::string text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)

static const char *	SkipWhiteSpace (const char *, TiXmlEncoding encoding)

static bool	StreamTo (std::istream in, int character, std::string tag)

static bool	StreamWhiteSpace (std::istream in, std::string tag)

static bool	StringEqual (const char p, const char endTag, bool ignoreCase, TiXmlEncoding encoding)

static int	ToLower (int v, TiXmlEncoding encoding)

Protected Attributes
TiXmlNode *	firstChild

TiXmlNode *	lastChild

TiXmlCursor	location

TiXmlNode *	next

TiXmlNode *	parent

TiXmlNode *	prev

NodeType	type

void *	userData
	Field containing a generic user pointer. More...

std::string	value

Static Protected Attributes
static const char *	errorString [TIXML_ERROR_STRING_COUNT]

Private Attributes
std::string	encoding

std::string	standalone

std::string	version

Detailed Description

In correct XML the declaration is the first entry in the file.

  <?xml version="1.0" standalone="yes"?>

TinyXml will happily read or write files without a declaration, however. There are 3 possible attributes to the declaration: version, encoding, and standalone.

Note: In this version of the code, the attributes are handled as special cases, not generic attributes, simply because there can only be at most 3 and they are always the same.

Definition at line 1303 of file tinyxml.h.

Member Enumeration Documentation

anonymous enum

inherited

Enumerator
TIXML_NO_ERROR
TIXML_ERROR
TIXML_ERROR_OPENING_FILE
TIXML_ERROR_PARSING_ELEMENT
TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME
TIXML_ERROR_READING_ELEMENT_VALUE
TIXML_ERROR_READING_ATTRIBUTES
TIXML_ERROR_PARSING_EMPTY
TIXML_ERROR_READING_END_TAG
TIXML_ERROR_PARSING_UNKNOWN
TIXML_ERROR_PARSING_COMMENT
TIXML_ERROR_PARSING_DECLARATION
TIXML_ERROR_DOCUMENT_EMPTY
TIXML_ERROR_EMBEDDED_NULL
TIXML_ERROR_PARSING_CDATA
TIXML_ERROR_DOCUMENT_TOP_ONLY
TIXML_ERROR_STRING_COUNT

Definition at line 284 of file tinyxml.h.

enum TiXmlNode::NodeType

inherited

The types of XML nodes supported by TinyXml.

(All the unsupported types are picked up by UNKNOWN.)

Enumerator
TINYXML_DOCUMENT
TINYXML_ELEMENT
TINYXML_COMMENT
TINYXML_UNKNOWN
TINYXML_TEXT
TINYXML_DECLARATION
TINYXML_TYPECOUNT

Definition at line 485 of file tinyxml.h.

Constructor & Destructor Documentation

TiXmlDeclaration::TiXmlDeclaration ( )

inline

Construct an empty declaration.

Definition at line 1307 of file tinyxml.h.

TiXmlDeclaration::TiXmlDeclaration	(	const std::string &	_version,
		const std::string &	_encoding,
		const std::string &	_standalone
	)

Constructor.

Definition at line 1347 of file tinyxml.cpp.

TiXmlDeclaration::TiXmlDeclaration	(	const char *	_version,
		const char *	_encoding,
		const char *	_standalone
	)

Construct.

Definition at line 1335 of file tinyxml.cpp.

TiXmlDeclaration::TiXmlDeclaration ( const TiXmlDeclaration & copy )

Definition at line 1359 of file tinyxml.cpp.

virtual TiXmlDeclaration::~TiXmlDeclaration ( )

inlinevirtual

Definition at line 1324 of file tinyxml.h.

Member Function Documentation

bool TiXmlDeclaration::Accept ( TiXmlVisitor * visitor ) const

virtual

Walk the XML tree visiting this node and all of its children.

Implements TiXmlNode.

Definition at line 1405 of file tinyxml.cpp.

void TiXmlNode::Clear ( )

inherited

Delete all the children of this node. Does not affect 'this'.

Definition at line 171 of file tinyxml.cpp.

TiXmlNode * TiXmlDeclaration::Clone ( ) const

virtual

Creates a copy of this Declaration and returns it.

Implements TiXmlNode.

Definition at line 1411 of file tinyxml.cpp.

int TiXmlBase::Column ( ) const

inlineinherited

See Row()

Definition at line 265 of file tinyxml.h.

void TiXmlBase::ConvertUTF32ToUTF8	(	unsigned long	input,
		char *	output,
		int *	length
	)

staticprotectedinherited

Definition at line 90 of file tinyxmlparser.cpp.

void TiXmlNode::CopyTo ( TiXmlNode * target ) const

protectedinherited

Definition at line 163 of file tinyxml.cpp.

void TiXmlDeclaration::CopyTo ( TiXmlDeclaration * target ) const

protected

Definition at line 1395 of file tinyxml.cpp.

void TiXmlBase::EncodeString	(	const std::string &	str,
		std::string *	out
	)

staticinherited

Expands entities in a string.

Note this should not contian the tag's '<', '>', etc, or they will be transformed into entities!

Definition at line 54 of file tinyxml.cpp.

const char* TiXmlDeclaration::Encoding ( ) const

inline

Encoding. Will return an empty string if none was found.

Definition at line 1329 of file tinyxml.h.

const TiXmlNode* TiXmlNode::FirstChild ( ) const

inlineinherited

The first child of this node. Will be null if there are no children.

Definition at line 545 of file tinyxml.h.

TiXmlNode* TiXmlNode::FirstChild ( )

inlineinherited

Definition at line 546 of file tinyxml.h.

const TiXmlNode * TiXmlNode::FirstChild ( const char * value ) const

inherited

The first child of this node with the matching 'value'.

Will be null if none found.

Definition at line 359 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::FirstChild ( const char * _value )

inlineinherited

The first child of this node with the matching 'value'. Will be null if none found.

Definition at line 549 of file tinyxml.h.

const TiXmlNode* TiXmlNode::FirstChild ( const std::string & _value ) const

inlineinherited

STL std::string form.

Definition at line 563 of file tinyxml.h.

TiXmlNode* TiXmlNode::FirstChild ( const std::string & _value )

inlineinherited

STL std::string form.

Definition at line 564 of file tinyxml.h.

const TiXmlElement * TiXmlNode::FirstChildElement ( ) const

inherited

Convenience function to get through elements.

Definition at line 450 of file tinyxml.cpp.

TiXmlElement* TiXmlNode::FirstChildElement ( )

inlineinherited

Definition at line 688 of file tinyxml.h.

const TiXmlElement * TiXmlNode::FirstChildElement ( const char * _value ) const

inherited

Convenience function to get through elements.

Definition at line 465 of file tinyxml.cpp.

TiXmlElement* TiXmlNode::FirstChildElement ( const char * _value )

inlineinherited

Definition at line 694 of file tinyxml.h.

const TiXmlElement* TiXmlNode::FirstChildElement ( const std::string & _value ) const

inlineinherited

STL std::string form.

Definition at line 699 of file tinyxml.h.

TiXmlElement* TiXmlNode::FirstChildElement ( const std::string & _value )

inlineinherited

STL std::string form.

Definition at line 700 of file tinyxml.h.

static const char* TiXmlBase::GetChar	(	const char *	p,
		char *	_value,
		int *	length,
		TiXmlEncoding	encoding
	)

inlinestaticprotectedinherited

Definition at line 347 of file tinyxml.h.

const TiXmlDocument * TiXmlNode::GetDocument ( ) const

inherited

Return a pointer to the Document this node lives in.

Returns null if not in a document.

Definition at line 510 of file tinyxml.cpp.

TiXmlDocument* TiXmlNode::GetDocument ( )

inlineinherited

Definition at line 713 of file tinyxml.h.

const char * TiXmlBase::GetEntity	(	const char *	in,
		char *	value,
		int *	length,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 442 of file tinyxmlparser.cpp.

void* TiXmlBase::GetUserData ( )

inlineinherited

Get a pointer to arbitrary user data.

Definition at line 268 of file tinyxml.h.

const void* TiXmlBase::GetUserData ( ) const

inlineinherited

Get a pointer to arbitrary user data.

Definition at line 269 of file tinyxml.h.

TiXmlNode * TiXmlNode::Identify	(	const char *	start,
		TiXmlEncoding	encoding
	)

protectedinherited

Definition at line 822 of file tinyxmlparser.cpp.

TiXmlNode * TiXmlNode::InsertAfterChild	(	TiXmlNode *	afterThis,
		const TiXmlNode &	addThis
	)

inherited

Add a new node related to this.

Adds a child after the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 262 of file tinyxml.cpp.

TiXmlNode * TiXmlNode::InsertBeforeChild	(	TiXmlNode *	beforeThis,
		const TiXmlNode &	addThis
	)

inherited

Add a new node related to this.

Adds a child before the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 230 of file tinyxml.cpp.

TiXmlNode * TiXmlNode::InsertEndChild ( const TiXmlNode & addThis )

inherited

Add a new node related to this.

Adds a child past the LastChild. Returns a pointer to the new object or NULL if an error occured.

Definition at line 215 of file tinyxml.cpp.

int TiXmlBase::IsAlpha	(	unsigned char	anyByte,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 131 of file tinyxmlparser.cpp.

int TiXmlBase::IsAlphaNum	(	unsigned char	anyByte,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 152 of file tinyxmlparser.cpp.

static bool TiXmlBase::IsWhiteSpace ( char c )

inlinestaticprotectedinherited

Definition at line 310 of file tinyxml.h.

static bool TiXmlBase::IsWhiteSpace ( int c )

inlinestaticprotectedinherited

Definition at line 314 of file tinyxml.h.

static bool TiXmlBase::IsWhiteSpaceCondensed ( )

inlinestaticinherited

Return the current white space setting.

Definition at line 244 of file tinyxml.h.

const TiXmlNode * TiXmlNode::IterateChildren ( const TiXmlNode * previous ) const

inherited

An alternate way to walk the children of a node.

One way to iterate over nodes is:

  for( child = parent->FirstChild(); child; child = child->NextSibling() )

IterateChildren does the same thing with the syntax:

  child = 0;
  while( child = parent->IterateChildren( child ) )

IterateChildren takes the previous child as input and finds the next one. If the previous child is null, it returns the first. IterateChildren will return null when done.

Definition at line 383 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::IterateChildren ( const TiXmlNode * previous )

inlineinherited

Definition at line 586 of file tinyxml.h.

const TiXmlNode * TiXmlNode::IterateChildren	(	const char *	value,
		const TiXmlNode *	previous
	)		const

inherited

This flavor of IterateChildren searches for children with a particular 'value'.

Definition at line 397 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::IterateChildren	(	const char *	_value,
		const TiXmlNode *	previous
	)

inlineinherited

Definition at line 592 of file tinyxml.h.

const TiXmlNode* TiXmlNode::IterateChildren	(	const std::string &	_value,
		const TiXmlNode *	previous
	)		const

inlineinherited

STL std::string form.

Definition at line 597 of file tinyxml.h.

TiXmlNode* TiXmlNode::IterateChildren	(	const std::string &	_value,
		const TiXmlNode *	previous
	)

inlineinherited

STL std::string form.

Definition at line 598 of file tinyxml.h.

const TiXmlNode* TiXmlNode::LastChild ( ) const

inlineinherited

Definition at line 554 of file tinyxml.h.

TiXmlNode* TiXmlNode::LastChild ( )

inlineinherited

The last child of this node. Will be null if there are no children.

Definition at line 555 of file tinyxml.h.

const TiXmlNode * TiXmlNode::LastChild ( const char * value ) const

inherited

Definition at line 371 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::LastChild ( const char * _value )

inlineinherited

The last child of this node matching 'value'. Will be null if there are no children.

Definition at line 558 of file tinyxml.h.

const TiXmlNode* TiXmlNode::LastChild ( const std::string & _value ) const

inlineinherited

STL std::string form.

Definition at line 565 of file tinyxml.h.

TiXmlNode* TiXmlNode::LastChild ( const std::string & _value )

inlineinherited

STL std::string form.

Definition at line 566 of file tinyxml.h.

TiXmlNode * TiXmlNode::LinkEndChild ( TiXmlNode * addThis )

inherited

Add a new node related to this.

Adds a child past the LastChild.

NOTE: the node to be added is passed by pointer, and will be henceforth owned (and deleted) by tinyXml. This method is efficient and avoids an extra copy, but should be used with care as it uses a different memory model than the other insert functions.

See also: InsertEndChild

Definition at line 188 of file tinyxml.cpp.

const TiXmlNode* TiXmlNode::NextSibling ( const std::string & _value ) const

inlineinherited

STL std::string form.

Definition at line 649 of file tinyxml.h.

TiXmlNode* TiXmlNode::NextSibling ( const std::string & _value )

inlineinherited

STL std::string form.

Definition at line 650 of file tinyxml.h.

const TiXmlNode* TiXmlNode::NextSibling ( ) const

inlineinherited

Navigate to a sibling node.

Definition at line 654 of file tinyxml.h.

TiXmlNode* TiXmlNode::NextSibling ( )

inlineinherited

Definition at line 655 of file tinyxml.h.

const TiXmlNode * TiXmlNode::NextSibling ( const char * _value ) const

inherited

Navigate to a sibling node with the given 'value'.

Definition at line 411 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::NextSibling ( const char * _next )

inlineinherited

Definition at line 659 of file tinyxml.h.

const TiXmlElement * TiXmlNode::NextSiblingElement ( ) const

inherited

Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 480 of file tinyxml.cpp.

TiXmlElement* TiXmlNode::NextSiblingElement ( )

inlineinherited

Definition at line 668 of file tinyxml.h.

const TiXmlElement * TiXmlNode::NextSiblingElement ( const char * _value ) const

inherited

Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 495 of file tinyxml.cpp.

TiXmlElement* TiXmlNode::NextSiblingElement ( const char * _next )

inlineinherited

Definition at line 677 of file tinyxml.h.

const TiXmlElement* TiXmlNode::NextSiblingElement ( const std::string & _value ) const

inlineinherited

STL std::string form.

Definition at line 682 of file tinyxml.h.

TiXmlElement* TiXmlNode::NextSiblingElement ( const std::string & _value )

inlineinherited

STL std::string form.

Definition at line 683 of file tinyxml.h.

bool TiXmlNode::NoChildren ( ) const

inlineinherited

Returns true if this node has no children.

Definition at line 718 of file tinyxml.h.

void TiXmlDeclaration::operator= ( const TiXmlDeclaration & copy )

Definition at line 1366 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::Parent ( )

inlineinherited

One step up the DOM.

Definition at line 542 of file tinyxml.h.

const TiXmlNode* TiXmlNode::Parent ( ) const

inlineinherited

Definition at line 543 of file tinyxml.h.

const char * TiXmlDeclaration::Parse	(	const char *	p,
		TiXmlParsingData *	data,
		TiXmlEncoding	encoding
	)

virtual

Implements TiXmlBase.

Definition at line 1573 of file tinyxmlparser.cpp.

const TiXmlNode* TiXmlNode::PreviousSibling ( ) const

inlineinherited

Navigate to a sibling node.

Definition at line 637 of file tinyxml.h.

TiXmlNode* TiXmlNode::PreviousSibling ( )

inlineinherited

Definition at line 638 of file tinyxml.h.

const TiXmlNode * TiXmlNode::PreviousSibling ( const char * _value ) const

inherited

Navigate to a sibling node.

Definition at line 423 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::PreviousSibling ( const char * _prev )

inlineinherited

Definition at line 642 of file tinyxml.h.

const TiXmlNode* TiXmlNode::PreviousSibling ( const std::string & _value ) const

inlineinherited

STL std::string form.

Definition at line 647 of file tinyxml.h.

TiXmlNode* TiXmlNode::PreviousSibling ( const std::string & _value )

inlineinherited

STL std::string form.

Definition at line 648 of file tinyxml.h.

void TiXmlDeclaration::Print	(	FILE *	cfile,
		int	depth,
		std::string *	str
	)		const

virtual

Definition at line 1373 of file tinyxml.cpp.

virtual void TiXmlDeclaration::Print	(	FILE *	cfile,
		int	depth
	)		const

inlinevirtual

All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implements TiXmlBase.

Definition at line 1337 of file tinyxml.h.

const char * TiXmlBase::ReadName	(	const char *	p,
		std::string *	name,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 405 of file tinyxmlparser.cpp.

const char * TiXmlBase::ReadText	(	const char *	in,
		std::string *	text,
		bool	ignoreWhiteSpace,
		const char *	endTag,
		bool	ignoreCase,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 578 of file tinyxmlparser.cpp.

bool TiXmlNode::RemoveChild ( TiXmlNode * removeThis )

inherited

Delete a child of this node.

Definition at line 333 of file tinyxml.cpp.

TiXmlNode * TiXmlNode::ReplaceChild	(	TiXmlNode *	replaceThis,
		const TiXmlNode &	withThis
	)

inherited

Replace a child of this node.

Returns a pointer to the new object or NULL if an error occured.

Definition at line 294 of file tinyxml.cpp.

int TiXmlBase::Row ( ) const

inlineinherited

Return the position, in the original source file, of this node or attribute.

The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value.

See also: TiXmlDocument::SetTabSize()

Definition at line 264 of file tinyxml.h.

static void TiXmlBase::SetCondenseWhiteSpace ( bool condense )

inlinestaticinherited

The world does not agree on whether white space should be kept or not.

In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this value is not thread safe.

Definition at line 241 of file tinyxml.h.

void TiXmlBase::SetUserData ( void * user )

inlineinherited

Set a pointer to arbitrary user data.

Definition at line 267 of file tinyxml.h.

void TiXmlNode::SetValue ( const char * _value )

inlineinherited

Changes the value of the node.

Defined as:

Document:  filename of the xml file
Element:  name of the element
Comment:  the comment text
Unknown:  the tag contents
Text:    the text string

Definition at line 531 of file tinyxml.h.

void TiXmlNode::SetValue ( const std::string & _value )

inlineinherited

STL std::string form.

Definition at line 535 of file tinyxml.h.

const char * TiXmlBase::SkipWhiteSpace	(	const char *	p,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 318 of file tinyxmlparser.cpp.

const char* TiXmlDeclaration::Standalone ( ) const

inline

Is this a standalone document?

Definition at line 1331 of file tinyxml.h.

void TiXmlDeclaration::StreamIn	(	std::istream *	in,
		std::string *	tag
	)

protectedvirtual

Implements TiXmlNode.

Definition at line 1550 of file tinyxmlparser.cpp.

bool TiXmlBase::StreamTo	(	std::istream *	in,
		int	character,
		std::string *	tag
	)

staticprotectedinherited

Definition at line 384 of file tinyxmlparser.cpp.

bool TiXmlBase::StreamWhiteSpace	(	std::istream *	in,
		std::string *	tag
	)

staticprotectedinherited

Definition at line 369 of file tinyxmlparser.cpp.

bool TiXmlBase::StringEqual	(	const char *	p,
		const char *	endTag,
		bool	ignoreCase,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 538 of file tinyxmlparser.cpp.

virtual const TiXmlComment* TiXmlNode::ToComment ( ) const

inlinevirtualinherited

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

Definition at line 722 of file tinyxml.h.

virtual TiXmlComment* TiXmlNode::ToComment ( )

inlinevirtualinherited

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

Definition at line 729 of file tinyxml.h.

virtual const TiXmlDeclaration* TiXmlDeclaration::ToDeclaration ( ) const

inlinevirtual

Cast to a more defined type. Will return null not of the requested type.

Reimplemented from TiXmlNode.

Definition at line 1343 of file tinyxml.h.

virtual TiXmlDeclaration* TiXmlDeclaration::ToDeclaration ( )

inlinevirtual

Cast to a more defined type. Will return null not of the requested type.

Reimplemented from TiXmlNode.

Definition at line 1344 of file tinyxml.h.

virtual const TiXmlDocument* TiXmlNode::ToDocument ( ) const

inlinevirtualinherited

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDocument.

Definition at line 720 of file tinyxml.h.

virtual TiXmlDocument* TiXmlNode::ToDocument ( )

inlinevirtualinherited

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDocument.

Definition at line 727 of file tinyxml.h.

virtual const TiXmlElement* TiXmlNode::ToElement ( ) const

inlinevirtualinherited

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlElement.

Definition at line 721 of file tinyxml.h.

virtual TiXmlElement* TiXmlNode::ToElement ( )

inlinevirtualinherited

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlElement.

Definition at line 728 of file tinyxml.h.

static int TiXmlBase::ToLower	(	int	v,
		TiXmlEncoding	encoding
	)

inlinestaticprotectedinherited

Definition at line 402 of file tinyxml.h.

virtual const TiXmlText* TiXmlNode::ToText ( ) const

inlinevirtualinherited

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

Definition at line 724 of file tinyxml.h.

virtual TiXmlText* TiXmlNode::ToText ( )

inlinevirtualinherited

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

Definition at line 731 of file tinyxml.h.

virtual const TiXmlUnknown* TiXmlNode::ToUnknown ( ) const

inlinevirtualinherited

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

Definition at line 723 of file tinyxml.h.

virtual TiXmlUnknown* TiXmlNode::ToUnknown ( )

inlinevirtualinherited

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

Definition at line 730 of file tinyxml.h.

int TiXmlNode::Type ( ) const

inlineinherited

Query the type (as an enumerated value, above) of this node.

The possible types are: DOCUMENT, ELEMENT, COMMENT, UNKNOWN, TEXT, and DECLARATION.

Definition at line 707 of file tinyxml.h.

const char* TiXmlNode::Value ( ) const

inlineinherited

The meaning of 'value' changes for the specific type of TiXmlNode.

Document:  filename of the xml file
Element:  name of the element
Comment:  the comment text
Unknown:  the tag contents
Text:    the text string

The subclasses will wrap this function.

Definition at line 510 of file tinyxml.h.

const std::string& TiXmlNode::ValueStr ( ) const

inlineinherited

Return Value() as a std::string.

If you only use STL, this is more efficient than calling Value(). Only available in STL mode.

Definition at line 517 of file tinyxml.h.

const std::string& TiXmlNode::ValueTStr ( ) const

inlineinherited

Definition at line 520 of file tinyxml.h.

const char* TiXmlDeclaration::Version ( ) const

inline

Version. Will return an empty string if none was found.

Definition at line 1327 of file tinyxml.h.

Member Data Documentation

std::string TiXmlDeclaration::encoding

private

Definition at line 1360 of file tinyxml.h.

const char * TiXmlBase::errorString

staticprotectedinherited

Initial value:

=
{
  "No error",
  "Error",
  "Failed to open file",
  "Error parsing Element.",
  "Failed to read Element name",
  "Error reading Element value.",
  "Error reading Attributes.",
  "Error: empty tag.",
  "Error reading end tag.",
  "Error parsing Unknown.",
  "Error parsing Comment.",
  "Error parsing Declaration.",
  "Error document empty.",
  "Error null (0) or unexpected EOF found in input stream.",
  "Error parsing CDATA.",
  "Error when TiXmlDocument added to document, because TiXmlDocument can only be at the root.",
}

Definition at line 391 of file tinyxml.h.

TiXmlNode* TiXmlNode::firstChild

protectedinherited

Definition at line 781 of file tinyxml.h.

TiXmlNode* TiXmlNode::lastChild

protectedinherited

Definition at line 782 of file tinyxml.h.

TiXmlCursor TiXmlBase::location

protectedinherited

Definition at line 393 of file tinyxml.h.

TiXmlNode* TiXmlNode::next

protectedinherited

Definition at line 787 of file tinyxml.h.

TiXmlNode* TiXmlNode::parent

protectedinherited

Definition at line 778 of file tinyxml.h.

TiXmlNode* TiXmlNode::prev

protectedinherited

Definition at line 786 of file tinyxml.h.

std::string TiXmlDeclaration::standalone

private

Definition at line 1361 of file tinyxml.h.

NodeType TiXmlNode::type

protectedinherited

Definition at line 779 of file tinyxml.h.

void* TiXmlBase::userData

protectedinherited

Field containing a generic user pointer.

Definition at line 396 of file tinyxml.h.

const int TiXmlBase::utf8ByteTable

staticinherited

Initial value:

=
{

    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
    2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
    3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,
    4,  4,  4,  4,  4,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1
}

Definition at line 273 of file tinyxml.h.

std::string TiXmlNode::value

protectedinherited

Definition at line 784 of file tinyxml.h.

std::string TiXmlDeclaration::version

private

Definition at line 1359 of file tinyxml.h.

The documentation for this class was generated from the following files:

include/madara/utility/tinyxml.h
include/madara/utility/tinyxml.cpp
include/madara/utility/tinyxmlparser.cpp

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
