The parent class for everything in the Document Object Model. More...

#include <tinyxml.h>

Inheritance diagram for TiXmlNode:

[legend]

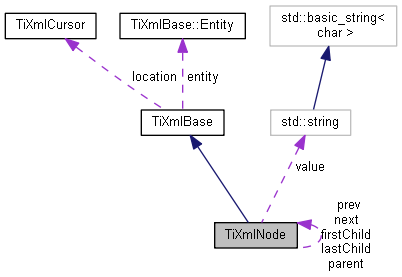

Collaboration diagram for TiXmlNode:

[legend]

Public Types
enum	{ TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_PARSING_ELEMENT, TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES, TIXML_ERROR_PARSING_EMPTY, TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT, TIXML_ERROR_PARSING_DECLARATION, TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_EMBEDDED_NULL, TIXML_ERROR_PARSING_CDATA, TIXML_ERROR_DOCUMENT_TOP_ONLY, TIXML_ERROR_STRING_COUNT }

enum	NodeType { TINYXML_DOCUMENT, TINYXML_ELEMENT, TINYXML_COMMENT, TINYXML_UNKNOWN, TINYXML_TEXT, TINYXML_DECLARATION, TINYXML_TYPECOUNT }
	The types of XML nodes supported by TinyXml. More...

Public Member Functions
virtual	~TiXmlNode ()

virtual bool	Accept (TiXmlVisitor *visitor) const =0
	Accept a hierchical visit the nodes in the TinyXML DOM. More...

void	Clear ()
	Delete all the children of this node. Does not affect 'this'. More...

virtual TiXmlNode *	Clone () const =0
	Create an exact duplicate of this node and return it. More...

int	Column () const
	See Row() More...

const TiXmlNode *	FirstChild () const
	The first child of this node. Will be null if there are no children. More...

TiXmlNode *	FirstChild ()

const TiXmlNode *	FirstChild (const char *value) const
	The first child of this node with the matching 'value'. More...

TiXmlNode *	FirstChild (const char *_value)
	The first child of this node with the matching 'value'. Will be null if none found. More...

const TiXmlNode *	FirstChild (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	FirstChild (const std::string &_value)
	STL std::string form. More...

const TiXmlElement *	FirstChildElement () const
	Convenience function to get through elements. More...

TiXmlElement *	FirstChildElement ()

const TiXmlElement *	FirstChildElement (const char *_value) const
	Convenience function to get through elements. More...

TiXmlElement *	FirstChildElement (const char *_value)

const TiXmlElement *	FirstChildElement (const std::string &_value) const
	STL std::string form. More...

TiXmlElement *	FirstChildElement (const std::string &_value)
	STL std::string form. More...

const TiXmlDocument *	GetDocument () const
	Return a pointer to the Document this node lives in. More...

TiXmlDocument *	GetDocument ()

void *	GetUserData ()
	Get a pointer to arbitrary user data. More...

const void *	GetUserData () const
	Get a pointer to arbitrary user data. More...

TiXmlNode *	InsertAfterChild (TiXmlNode *afterThis, const TiXmlNode &addThis)
	Add a new node related to this. More...

TiXmlNode *	InsertBeforeChild (TiXmlNode *beforeThis, const TiXmlNode &addThis)
	Add a new node related to this. More...

TiXmlNode *	InsertEndChild (const TiXmlNode &addThis)
	Add a new node related to this. More...

const TiXmlNode *	IterateChildren (const TiXmlNode *previous) const
	An alternate way to walk the children of a node. More...

TiXmlNode *	IterateChildren (const TiXmlNode *previous)

const TiXmlNode *	IterateChildren (const char value, const TiXmlNode previous) const
	This flavor of IterateChildren searches for children with a particular 'value'. More...

TiXmlNode *	IterateChildren (const char _value, const TiXmlNode previous)

const TiXmlNode *	IterateChildren (const std::string &_value, const TiXmlNode *previous) const
	STL std::string form. More...

TiXmlNode *	IterateChildren (const std::string &_value, const TiXmlNode *previous)
	STL std::string form. More...

const TiXmlNode *	LastChild () const

TiXmlNode *	LastChild ()
	The last child of this node. Will be null if there are no children. More...

const TiXmlNode *	LastChild (const char *value) const

TiXmlNode *	LastChild (const char *_value)
	The last child of this node matching 'value'. Will be null if there are no children. More...

const TiXmlNode *	LastChild (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	LastChild (const std::string &_value)
	STL std::string form. More...

TiXmlNode *	LinkEndChild (TiXmlNode *addThis)
	Add a new node related to this. More...

const TiXmlNode *	NextSibling (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	NextSibling (const std::string &_value)
	STL std::string form. More...

const TiXmlNode *	NextSibling () const
	Navigate to a sibling node. More...

TiXmlNode *	NextSibling ()

const TiXmlNode *	NextSibling (const char *) const
	Navigate to a sibling node with the given 'value'. More...

TiXmlNode *	NextSibling (const char *_next)

const TiXmlElement *	NextSiblingElement () const
	Convenience function to get through elements. More...

TiXmlElement *	NextSiblingElement ()

const TiXmlElement *	NextSiblingElement (const char *) const
	Convenience function to get through elements. More...

TiXmlElement *	NextSiblingElement (const char *_next)

const TiXmlElement *	NextSiblingElement (const std::string &_value) const
	STL std::string form. More...

TiXmlElement *	NextSiblingElement (const std::string &_value)
	STL std::string form. More...

bool	NoChildren () const
	Returns true if this node has no children. More...

TiXmlNode *	Parent ()
	One step up the DOM. More...

const TiXmlNode *	Parent () const

virtual const char *	Parse (const char p, TiXmlParsingData data, TiXmlEncoding encoding)=0

const TiXmlNode *	PreviousSibling () const
	Navigate to a sibling node. More...

TiXmlNode *	PreviousSibling ()

const TiXmlNode *	PreviousSibling (const char *) const
	Navigate to a sibling node. More...

TiXmlNode *	PreviousSibling (const char *_prev)

const TiXmlNode *	PreviousSibling (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	PreviousSibling (const std::string &_value)
	STL std::string form. More...

virtual void	Print (FILE *cfile, int depth) const =0
	All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null. More...

bool	RemoveChild (TiXmlNode *removeThis)
	Delete a child of this node. More...

TiXmlNode *	ReplaceChild (TiXmlNode *replaceThis, const TiXmlNode &withThis)
	Replace a child of this node. More...

int	Row () const
	Return the position, in the original source file, of this node or attribute. More...

void	SetUserData (void *user)
	Set a pointer to arbitrary user data. More...

void	SetValue (const char *_value)
	Changes the value of the node. More...

void	SetValue (const std::string &_value)
	STL std::string form. More...

virtual const TiXmlComment *	ToComment () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlComment *	ToComment ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlDeclaration *	ToDeclaration () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlDeclaration *	ToDeclaration ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlDocument *	ToDocument () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlDocument *	ToDocument ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlElement *	ToElement () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlElement *	ToElement ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlText *	ToText () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlText *	ToText ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlUnknown *	ToUnknown () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlUnknown *	ToUnknown ()
	Cast to a more defined type. Will return null if not of the requested type. More...

int	Type () const
	Query the type (as an enumerated value, above) of this node. More...

const char *	Value () const
	The meaning of 'value' changes for the specific type of TiXmlNode. More...

const std::string &	ValueStr () const
	Return Value() as a std::string. More...

const std::string &	ValueTStr () const

Static Public Member Functions
static void	EncodeString (const std::string &str, std::string *out)
	Expands entities in a string. More...

static bool	IsWhiteSpaceCondensed ()
	Return the current white space setting. More...

static void	SetCondenseWhiteSpace (bool condense)
	The world does not agree on whether white space should be kept or not. More...

Static Public Attributes
static const int	utf8ByteTable [256]

Protected Member Functions
	TiXmlNode (NodeType _type)

void	CopyTo (TiXmlNode *target) const

TiXmlNode *	Identify (const char *start, TiXmlEncoding encoding)

virtual void	StreamIn (std::istream in, std::string tag)=0

Static Protected Member Functions
static void	ConvertUTF32ToUTF8 (unsigned long input, char output, int length)

static const char *	GetChar (const char p, char _value, int *length, TiXmlEncoding encoding)

static const char *	GetEntity (const char in, char value, int *length, TiXmlEncoding encoding)

static int	IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)

static int	IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)

static bool	IsWhiteSpace (char c)

static bool	IsWhiteSpace (int c)

static const char *	ReadName (const char p, std::string name, TiXmlEncoding encoding)

static const char *	ReadText (const char in, std::string text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)

static const char *	SkipWhiteSpace (const char *, TiXmlEncoding encoding)

static bool	StreamTo (std::istream in, int character, std::string tag)

static bool	StreamWhiteSpace (std::istream in, std::string tag)

static bool	StringEqual (const char p, const char endTag, bool ignoreCase, TiXmlEncoding encoding)

static int	ToLower (int v, TiXmlEncoding encoding)

Protected Attributes
TiXmlNode *	firstChild

TiXmlNode *	lastChild

TiXmlCursor	location

TiXmlNode *	next

TiXmlNode *	parent

TiXmlNode *	prev

NodeType	type

void *	userData
	Field containing a generic user pointer. More...

std::string	value

Static Protected Attributes
static const char *	errorString [TIXML_ERROR_STRING_COUNT]

Private Member Functions
	TiXmlNode (const TiXmlNode &)

void	operator= (const TiXmlNode &base)

Friends
std::ostream &	operator<< (std::ostream &out, const TiXmlNode &base)
	An output stream operator, for every class. More...

std::string &	operator<< (std::string &out, const TiXmlNode &base)
	Appends the XML node or attribute to a std::string. More...

std::istream &	operator>> (std::istream &in, TiXmlNode &base)
	An input stream operator, for every class. More...

class	TiXmlDocument

class	TiXmlElement

Detailed Description

The parent class for everything in the Document Object Model.

(Except for attributes). Nodes have siblings, a parent, and children. A node can be in a document, or stand on its own. The type of a TiXmlNode can be queried, and it can be cast to its more defined type.

Definition at line 446 of file tinyxml.h.

Member Enumeration Documentation

anonymous enum

inherited

Enumerator
TIXML_NO_ERROR
TIXML_ERROR
TIXML_ERROR_OPENING_FILE
TIXML_ERROR_PARSING_ELEMENT
TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME
TIXML_ERROR_READING_ELEMENT_VALUE
TIXML_ERROR_READING_ATTRIBUTES
TIXML_ERROR_PARSING_EMPTY
TIXML_ERROR_READING_END_TAG
TIXML_ERROR_PARSING_UNKNOWN
TIXML_ERROR_PARSING_COMMENT
TIXML_ERROR_PARSING_DECLARATION
TIXML_ERROR_DOCUMENT_EMPTY
TIXML_ERROR_EMBEDDED_NULL
TIXML_ERROR_PARSING_CDATA
TIXML_ERROR_DOCUMENT_TOP_ONLY
TIXML_ERROR_STRING_COUNT

Definition at line 284 of file tinyxml.h.

enum TiXmlNode::NodeType

The types of XML nodes supported by TinyXml.

(All the unsupported types are picked up by UNKNOWN.)

Enumerator
TINYXML_DOCUMENT
TINYXML_ELEMENT
TINYXML_COMMENT
TINYXML_UNKNOWN
TINYXML_TEXT
TINYXML_DECLARATION
TINYXML_TYPECOUNT

Definition at line 485 of file tinyxml.h.

Constructor & Destructor Documentation

TiXmlNode::~TiXmlNode ( )

virtual

Definition at line 149 of file tinyxml.cpp.

TiXmlNode::TiXmlNode ( NodeType _type )

protected

Definition at line 138 of file tinyxml.cpp.

TiXmlNode::TiXmlNode ( const TiXmlNode & )

private

Member Function Documentation

virtual bool TiXmlNode::Accept ( TiXmlVisitor * visitor ) const

pure virtual

Accept a hierchical visit the nodes in the TinyXML DOM.

Every node in the XML tree will be conditionally visited and the host will be called back via the TiXmlVisitor interface.

This is essentially a SAX interface for TinyXML. (Note however it doesn't re-parse the XML for the callbacks, so the performance of TinyXML is unchanged by using this interface versus any other.)

The interface has been based on ideas from:

Which are both good references for "visiting".

An example of using Accept():

TiXmlPrinter printer;
tinyxmlDoc.Accept( &printer );
const char* xmlcstr = printer.CStr();

Implemented in TiXmlDocument, TiXmlUnknown, TiXmlDeclaration, TiXmlText, TiXmlComment, and TiXmlElement.

void TiXmlNode::Clear ( )

Delete all the children of this node. Does not affect 'this'.

Definition at line 171 of file tinyxml.cpp.

virtual TiXmlNode* TiXmlNode::Clone ( ) const

pure virtual

Create an exact duplicate of this node and return it.

The memory must be deleted by the caller.

Implemented in TiXmlDocument, TiXmlUnknown, TiXmlDeclaration, TiXmlText, TiXmlComment, and TiXmlElement.

int TiXmlBase::Column ( ) const

inlineinherited

See Row()

Definition at line 265 of file tinyxml.h.

void TiXmlBase::ConvertUTF32ToUTF8	(	unsigned long	input,
		char *	output,
		int *	length
	)

staticprotectedinherited

Definition at line 90 of file tinyxmlparser.cpp.

void TiXmlNode::CopyTo ( TiXmlNode * target ) const

protected

Definition at line 163 of file tinyxml.cpp.

void TiXmlBase::EncodeString	(	const std::string &	str,
		std::string *	out
	)

staticinherited

Expands entities in a string.

Note this should not contian the tag's '<', '>', etc, or they will be transformed into entities!

Definition at line 54 of file tinyxml.cpp.

const TiXmlNode* TiXmlNode::FirstChild ( ) const

inline

The first child of this node. Will be null if there are no children.

Definition at line 545 of file tinyxml.h.

TiXmlNode* TiXmlNode::FirstChild ( )

inline

Definition at line 546 of file tinyxml.h.

const TiXmlNode * TiXmlNode::FirstChild ( const char * value ) const

The first child of this node with the matching 'value'.

Will be null if none found.

Definition at line 359 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::FirstChild ( const char * _value )

inline

The first child of this node with the matching 'value'. Will be null if none found.

Definition at line 549 of file tinyxml.h.

const TiXmlNode* TiXmlNode::FirstChild ( const std::string & _value ) const

inline

STL std::string form.

Definition at line 563 of file tinyxml.h.

TiXmlNode* TiXmlNode::FirstChild ( const std::string & _value )

inline

STL std::string form.

Definition at line 564 of file tinyxml.h.

const TiXmlElement * TiXmlNode::FirstChildElement ( ) const

Convenience function to get through elements.

Definition at line 450 of file tinyxml.cpp.

TiXmlElement* TiXmlNode::FirstChildElement ( )

inline

Definition at line 688 of file tinyxml.h.

const TiXmlElement * TiXmlNode::FirstChildElement ( const char * _value ) const

Convenience function to get through elements.

Definition at line 465 of file tinyxml.cpp.

TiXmlElement* TiXmlNode::FirstChildElement ( const char * _value )

inline

Definition at line 694 of file tinyxml.h.

const TiXmlElement* TiXmlNode::FirstChildElement ( const std::string & _value ) const

inline

STL std::string form.

Definition at line 699 of file tinyxml.h.

TiXmlElement* TiXmlNode::FirstChildElement ( const std::string & _value )

inline

STL std::string form.

Definition at line 700 of file tinyxml.h.

static const char* TiXmlBase::GetChar	(	const char *	p,
		char *	_value,
		int *	length,
		TiXmlEncoding	encoding
	)

inlinestaticprotectedinherited

Definition at line 347 of file tinyxml.h.

const TiXmlDocument * TiXmlNode::GetDocument ( ) const

Return a pointer to the Document this node lives in.

Returns null if not in a document.

Definition at line 510 of file tinyxml.cpp.

TiXmlDocument* TiXmlNode::GetDocument ( )

inline

Definition at line 713 of file tinyxml.h.

const char * TiXmlBase::GetEntity	(	const char *	in,
		char *	value,
		int *	length,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 442 of file tinyxmlparser.cpp.

void* TiXmlBase::GetUserData ( )

inlineinherited

Get a pointer to arbitrary user data.

Definition at line 268 of file tinyxml.h.

const void* TiXmlBase::GetUserData ( ) const

inlineinherited

Get a pointer to arbitrary user data.

Definition at line 269 of file tinyxml.h.

TiXmlNode * TiXmlNode::Identify	(	const char *	start,
		TiXmlEncoding	encoding
	)

protected

Definition at line 822 of file tinyxmlparser.cpp.

TiXmlNode * TiXmlNode::InsertAfterChild	(	TiXmlNode *	afterThis,
		const TiXmlNode &	addThis
	)

Add a new node related to this.

Adds a child after the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 262 of file tinyxml.cpp.

TiXmlNode * TiXmlNode::InsertBeforeChild	(	TiXmlNode *	beforeThis,
		const TiXmlNode &	addThis
	)

Add a new node related to this.

Adds a child before the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 230 of file tinyxml.cpp.

TiXmlNode * TiXmlNode::InsertEndChild ( const TiXmlNode & addThis )

Add a new node related to this.

Adds a child past the LastChild. Returns a pointer to the new object or NULL if an error occured.

Definition at line 215 of file tinyxml.cpp.

int TiXmlBase::IsAlpha	(	unsigned char	anyByte,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 131 of file tinyxmlparser.cpp.

int TiXmlBase::IsAlphaNum	(	unsigned char	anyByte,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 152 of file tinyxmlparser.cpp.

static bool TiXmlBase::IsWhiteSpace ( char c )

inlinestaticprotectedinherited

Definition at line 310 of file tinyxml.h.

static bool TiXmlBase::IsWhiteSpace ( int c )

inlinestaticprotectedinherited

Definition at line 314 of file tinyxml.h.

static bool TiXmlBase::IsWhiteSpaceCondensed ( )

inlinestaticinherited

Return the current white space setting.

Definition at line 244 of file tinyxml.h.

const TiXmlNode * TiXmlNode::IterateChildren ( const TiXmlNode * previous ) const

An alternate way to walk the children of a node.

One way to iterate over nodes is:

  for( child = parent->FirstChild(); child; child = child->NextSibling() )

IterateChildren does the same thing with the syntax:

  child = 0;
  while( child = parent->IterateChildren( child ) )

IterateChildren takes the previous child as input and finds the next one. If the previous child is null, it returns the first. IterateChildren will return null when done.

Definition at line 383 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::IterateChildren ( const TiXmlNode * previous )

inline

Definition at line 586 of file tinyxml.h.

const TiXmlNode * TiXmlNode::IterateChildren	(	const char *	value,
		const TiXmlNode *	previous
	)		const

This flavor of IterateChildren searches for children with a particular 'value'.

Definition at line 397 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::IterateChildren	(	const char *	_value,
		const TiXmlNode *	previous
	)

inline

Definition at line 592 of file tinyxml.h.

const TiXmlNode* TiXmlNode::IterateChildren	(	const std::string &	_value,
		const TiXmlNode *	previous
	)		const

inline

STL std::string form.

Definition at line 597 of file tinyxml.h.

TiXmlNode* TiXmlNode::IterateChildren	(	const std::string &	_value,
		const TiXmlNode *	previous
	)

inline

STL std::string form.

Definition at line 598 of file tinyxml.h.

const TiXmlNode* TiXmlNode::LastChild ( ) const

inline

Definition at line 554 of file tinyxml.h.

TiXmlNode* TiXmlNode::LastChild ( )

inline

The last child of this node. Will be null if there are no children.

Definition at line 555 of file tinyxml.h.

const TiXmlNode * TiXmlNode::LastChild ( const char * value ) const

Definition at line 371 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::LastChild ( const char * _value )

inline

The last child of this node matching 'value'. Will be null if there are no children.

Definition at line 558 of file tinyxml.h.

const TiXmlNode* TiXmlNode::LastChild ( const std::string & _value ) const

inline

STL std::string form.

Definition at line 565 of file tinyxml.h.

TiXmlNode* TiXmlNode::LastChild ( const std::string & _value )

inline

STL std::string form.

Definition at line 566 of file tinyxml.h.

TiXmlNode * TiXmlNode::LinkEndChild ( TiXmlNode * addThis )

Add a new node related to this.

Adds a child past the LastChild.

NOTE: the node to be added is passed by pointer, and will be henceforth owned (and deleted) by tinyXml. This method is efficient and avoids an extra copy, but should be used with care as it uses a different memory model than the other insert functions.

See also: InsertEndChild

Definition at line 188 of file tinyxml.cpp.

const TiXmlNode* TiXmlNode::NextSibling ( const std::string & _value ) const

inline

STL std::string form.

Definition at line 649 of file tinyxml.h.

TiXmlNode* TiXmlNode::NextSibling ( const std::string & _value )

inline

STL std::string form.

Definition at line 650 of file tinyxml.h.

const TiXmlNode* TiXmlNode::NextSibling ( ) const

inline

Navigate to a sibling node.

Definition at line 654 of file tinyxml.h.

TiXmlNode* TiXmlNode::NextSibling ( )

inline

Definition at line 655 of file tinyxml.h.

const TiXmlNode * TiXmlNode::NextSibling ( const char * _value ) const

Navigate to a sibling node with the given 'value'.

Definition at line 411 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::NextSibling ( const char * _next )

inline

Definition at line 659 of file tinyxml.h.

const TiXmlElement * TiXmlNode::NextSiblingElement ( ) const

Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 480 of file tinyxml.cpp.

TiXmlElement* TiXmlNode::NextSiblingElement ( )

inline

Definition at line 668 of file tinyxml.h.

const TiXmlElement * TiXmlNode::NextSiblingElement ( const char * _value ) const

Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 495 of file tinyxml.cpp.

TiXmlElement* TiXmlNode::NextSiblingElement ( const char * _next )

inline

Definition at line 677 of file tinyxml.h.

const TiXmlElement* TiXmlNode::NextSiblingElement ( const std::string & _value ) const

inline

STL std::string form.

Definition at line 682 of file tinyxml.h.

TiXmlElement* TiXmlNode::NextSiblingElement ( const std::string & _value )

inline

STL std::string form.

Definition at line 683 of file tinyxml.h.

bool TiXmlNode::NoChildren ( ) const

inline

Returns true if this node has no children.

Definition at line 718 of file tinyxml.h.

void TiXmlNode::operator= ( const TiXmlNode & base )

private

TiXmlNode* TiXmlNode::Parent ( )

inline

One step up the DOM.

Definition at line 542 of file tinyxml.h.

const TiXmlNode* TiXmlNode::Parent ( ) const

inline

Definition at line 543 of file tinyxml.h.

virtual const char* TiXmlBase::Parse	(	const char *	p,
		TiXmlParsingData *	data,
		TiXmlEncoding	encoding
	)

pure virtualinherited

Implemented in TiXmlDocument, TiXmlUnknown, TiXmlDeclaration, TiXmlText, TiXmlComment, TiXmlElement, and TiXmlAttribute.

const TiXmlNode* TiXmlNode::PreviousSibling ( ) const

inline

Navigate to a sibling node.

Definition at line 637 of file tinyxml.h.

TiXmlNode* TiXmlNode::PreviousSibling ( )

inline

Definition at line 638 of file tinyxml.h.

const TiXmlNode * TiXmlNode::PreviousSibling ( const char * _value ) const

Navigate to a sibling node.

Definition at line 423 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::PreviousSibling ( const char * _prev )

inline

Definition at line 642 of file tinyxml.h.

const TiXmlNode* TiXmlNode::PreviousSibling ( const std::string & _value ) const

inline

STL std::string form.

Definition at line 647 of file tinyxml.h.

TiXmlNode* TiXmlNode::PreviousSibling ( const std::string & _value )

inline

STL std::string form.

Definition at line 648 of file tinyxml.h.

virtual void TiXmlBase::Print	(	FILE *	cfile,
		int	depth
	)		const

pure virtualinherited

All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implemented in TiXmlDocument, TiXmlUnknown, TiXmlDeclaration, TiXmlText, TiXmlComment, TiXmlElement, and TiXmlAttribute.

const char * TiXmlBase::ReadName	(	const char *	p,
		std::string *	name,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 405 of file tinyxmlparser.cpp.

const char * TiXmlBase::ReadText	(	const char *	in,
		std::string *	text,
		bool	ignoreWhiteSpace,
		const char *	endTag,
		bool	ignoreCase,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 578 of file tinyxmlparser.cpp.

bool TiXmlNode::RemoveChild ( TiXmlNode * removeThis )

Delete a child of this node.

Definition at line 333 of file tinyxml.cpp.

TiXmlNode * TiXmlNode::ReplaceChild	(	TiXmlNode *	replaceThis,
		const TiXmlNode &	withThis
	)

Replace a child of this node.

Returns a pointer to the new object or NULL if an error occured.

Definition at line 294 of file tinyxml.cpp.

int TiXmlBase::Row ( ) const

inlineinherited

Return the position, in the original source file, of this node or attribute.

The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value.

See also: TiXmlDocument::SetTabSize()

Definition at line 264 of file tinyxml.h.

static void TiXmlBase::SetCondenseWhiteSpace ( bool condense )

inlinestaticinherited

The world does not agree on whether white space should be kept or not.

In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this value is not thread safe.

Definition at line 241 of file tinyxml.h.

void TiXmlBase::SetUserData ( void * user )

inlineinherited

Set a pointer to arbitrary user data.

Definition at line 267 of file tinyxml.h.

void TiXmlNode::SetValue ( const char * _value )

inline

Changes the value of the node.

Defined as:

Document:  filename of the xml file
Element:  name of the element
Comment:  the comment text
Unknown:  the tag contents
Text:    the text string

Definition at line 531 of file tinyxml.h.

void TiXmlNode::SetValue ( const std::string & _value )

inline

STL std::string form.

Definition at line 535 of file tinyxml.h.

const char * TiXmlBase::SkipWhiteSpace	(	const char *	p,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 318 of file tinyxmlparser.cpp.

virtual void TiXmlNode::StreamIn	(	std::istream *	in,
		std::string *	tag
	)

protectedpure virtual

Implemented in TiXmlDocument, TiXmlUnknown, TiXmlDeclaration, TiXmlText, TiXmlComment, and TiXmlElement.

bool TiXmlBase::StreamTo	(	std::istream *	in,
		int	character,
		std::string *	tag
	)

staticprotectedinherited

Definition at line 384 of file tinyxmlparser.cpp.

bool TiXmlBase::StreamWhiteSpace	(	std::istream *	in,
		std::string *	tag
	)

staticprotectedinherited

Definition at line 369 of file tinyxmlparser.cpp.

bool TiXmlBase::StringEqual	(	const char *	p,
		const char *	endTag,
		bool	ignoreCase,
		TiXmlEncoding	encoding
	)

staticprotectedinherited

Definition at line 538 of file tinyxmlparser.cpp.

virtual const TiXmlComment* TiXmlNode::ToComment ( ) const

inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

Definition at line 722 of file tinyxml.h.

virtual TiXmlComment* TiXmlNode::ToComment ( )

inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

Definition at line 729 of file tinyxml.h.

virtual const TiXmlDeclaration* TiXmlNode::ToDeclaration ( ) const

inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDeclaration.

Definition at line 725 of file tinyxml.h.

virtual TiXmlDeclaration* TiXmlNode::ToDeclaration ( )

inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDeclaration.

Definition at line 732 of file tinyxml.h.

virtual const TiXmlDocument* TiXmlNode::ToDocument ( ) const

inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDocument.

Definition at line 720 of file tinyxml.h.

virtual TiXmlDocument* TiXmlNode::ToDocument ( )

inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDocument.

Definition at line 727 of file tinyxml.h.

virtual const TiXmlElement* TiXmlNode::ToElement ( ) const

inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlElement.

Definition at line 721 of file tinyxml.h.

virtual TiXmlElement* TiXmlNode::ToElement ( )

inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlElement.

Definition at line 728 of file tinyxml.h.

static int TiXmlBase::ToLower	(	int	v,
		TiXmlEncoding	encoding
	)

inlinestaticprotectedinherited

Definition at line 402 of file tinyxml.h.

virtual const TiXmlText* TiXmlNode::ToText ( ) const

inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

Definition at line 724 of file tinyxml.h.

virtual TiXmlText* TiXmlNode::ToText ( )

inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

Definition at line 731 of file tinyxml.h.

virtual const TiXmlUnknown* TiXmlNode::ToUnknown ( ) const

inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

Definition at line 723 of file tinyxml.h.

virtual TiXmlUnknown* TiXmlNode::ToUnknown ( )

inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

Definition at line 730 of file tinyxml.h.

int TiXmlNode::Type ( ) const

inline

Query the type (as an enumerated value, above) of this node.

The possible types are: DOCUMENT, ELEMENT, COMMENT, UNKNOWN, TEXT, and DECLARATION.

Definition at line 707 of file tinyxml.h.

const char* TiXmlNode::Value ( ) const

inline

The meaning of 'value' changes for the specific type of TiXmlNode.

Document:  filename of the xml file
Element:  name of the element
Comment:  the comment text
Unknown:  the tag contents
Text:    the text string

The subclasses will wrap this function.

Definition at line 510 of file tinyxml.h.

const std::string& TiXmlNode::ValueStr ( ) const

inline

Return Value() as a std::string.

If you only use STL, this is more efficient than calling Value(). Only available in STL mode.

Definition at line 517 of file tinyxml.h.

const std::string& TiXmlNode::ValueTStr ( ) const

inline

Definition at line 520 of file tinyxml.h.

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	out,
		const TiXmlNode &	base
	)

friend

An output stream operator, for every class.

Note that this outputs without any newlines or formatting, as opposed to Print(), which includes tabs and new lines.

The operator<< and operator>> are not completely symmetric. Writing a node to a stream is very well defined. You'll get a nice stream of output, without any extra whitespace or newlines.

But reading is not as well defined. (As it always is.) If you create a TiXmlElement (for example) and read that from an input stream, the text needs to define an element or junk will result. This is true of all input streams, but it's worth keeping in mind.

A TiXmlDocument will read nodes until it reads a root element, and all the children of that root element.

Definition at line 1564 of file tinyxml.cpp.

std::string& operator<<	(	std::string &	out,
		const TiXmlNode &	base
	)

friend

Appends the XML node or attribute to a std::string.

Definition at line 1575 of file tinyxml.cpp.

std::istream& operator>>	(	std::istream &	in,
		TiXmlNode &	base
	)

friend

An input stream operator, for every class.

Tolerant of newlines and formatting, but doesn't expect them.

Definition at line 1551 of file tinyxml.cpp.

friend class TiXmlDocument

friend

Definition at line 448 of file tinyxml.h.

friend class TiXmlElement

friend

Definition at line 449 of file tinyxml.h.

Member Data Documentation

const char * TiXmlBase::errorString

staticprotectedinherited

Initial value:

=
{
  "No error",
  "Error",
  "Failed to open file",
  "Error parsing Element.",
  "Failed to read Element name",
  "Error reading Element value.",
  "Error reading Attributes.",
  "Error: empty tag.",
  "Error reading end tag.",
  "Error parsing Unknown.",
  "Error parsing Comment.",
  "Error parsing Declaration.",
  "Error document empty.",
  "Error null (0) or unexpected EOF found in input stream.",
  "Error parsing CDATA.",
  "Error when TiXmlDocument added to document, because TiXmlDocument can only be at the root.",
}

Definition at line 391 of file tinyxml.h.

TiXmlNode* TiXmlNode::firstChild

protected

Definition at line 781 of file tinyxml.h.

TiXmlNode* TiXmlNode::lastChild

protected

Definition at line 782 of file tinyxml.h.

TiXmlCursor TiXmlBase::location

protectedinherited

Definition at line 393 of file tinyxml.h.

TiXmlNode* TiXmlNode::next

protected

Definition at line 787 of file tinyxml.h.

TiXmlNode* TiXmlNode::parent

protected

Definition at line 778 of file tinyxml.h.

TiXmlNode* TiXmlNode::prev

protected

Definition at line 786 of file tinyxml.h.

NodeType TiXmlNode::type

protected

Definition at line 779 of file tinyxml.h.

void* TiXmlBase::userData

protectedinherited

Field containing a generic user pointer.

Definition at line 396 of file tinyxml.h.

const int TiXmlBase::utf8ByteTable

staticinherited

Initial value:

=
{

    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
    1,  1,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
    2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
    3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,
    4,  4,  4,  4,  4,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1
}

Definition at line 273 of file tinyxml.h.

std::string TiXmlNode::value

protected

Definition at line 784 of file tinyxml.h.

The documentation for this class was generated from the following files:

include/madara/utility/tinyxml.h
include/madara/utility/tinyxml.cpp
include/madara/utility/tinyxmlparser.cpp

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Friends

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
